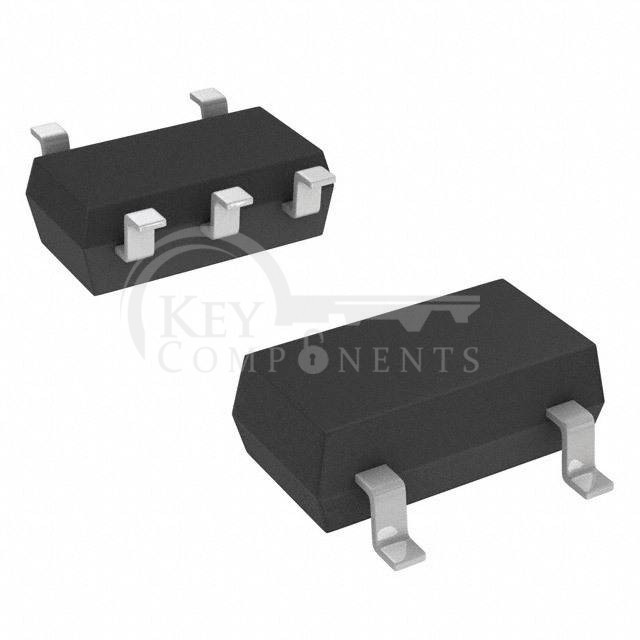

XN0NE9200L

Manufacturer Part	XN0NE9200L
Manufacturer	Panasonic Electronic Components
Description	MOSFET P-CH 12V 1.2A MINI5-G1
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4V
Rds On (Max) @ Id, Vgs:	450mOhm @ 800mA, 4V
Vgs(th) (Max) @ Id:	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±15V
Input Capacitance (Ciss) (Max) @ Vds:	-
FET Feature:	Schottky Diode (Isolated)
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Mini5-G1
Package / Case:	SC-74A, SOT-753
