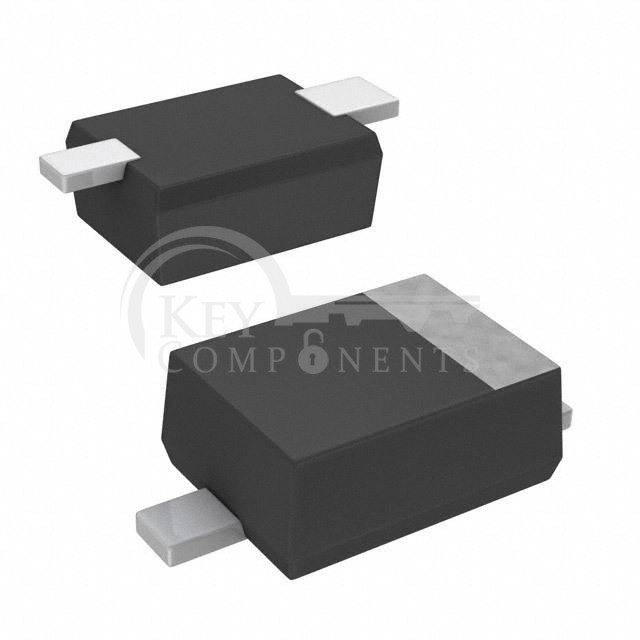

MAZ8270GML
| Manufacturer Part | MAZ8270GML |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | DIODE ZENER 27V 150MW SMINI2 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Zener (Nom) (Vz): | 27 V |
| Tolerance: | ±7% |
| Power - Max: | 150 mW |
| Impedance (Max) (Zzt): | 120 Ohms |
| Current - Reverse Leakage @ Vr: | 50 nA @ 21 V |
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 10 mA |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-90, SOD-323F |
| Supplier Device Package: | SMini2-F3 |
