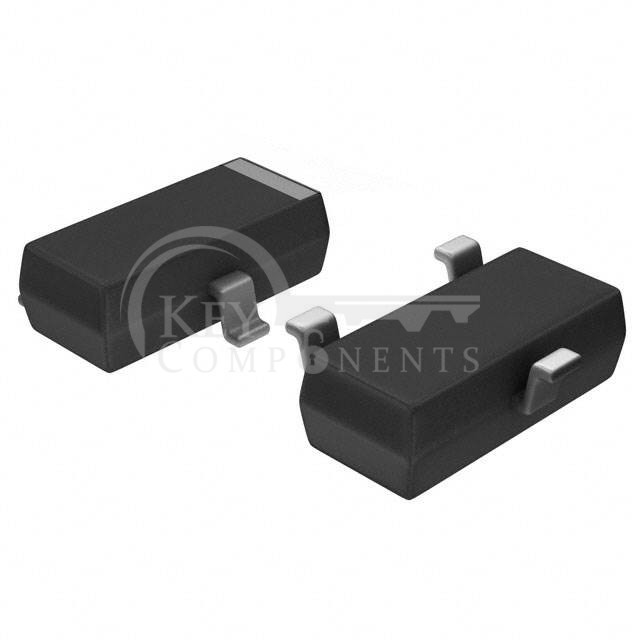

MAZ30680ML
| Manufacturer Part | MAZ30680ML |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | DIODE ZENER 6.8V 200MW MINI3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Zener (Nom) (Vz): | 6.8 V |
| Tolerance: | ±6% |
| Power - Max: | 200 mW |
| Impedance (Max) (Zzt): | 15 Ohms |
| Current - Reverse Leakage @ Vr: | 2 µA @ 4 V |
| Voltage - Forward (Vf) (Max) @ If: | 900 mV @ 10 mA |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | Mini3-G1 |
