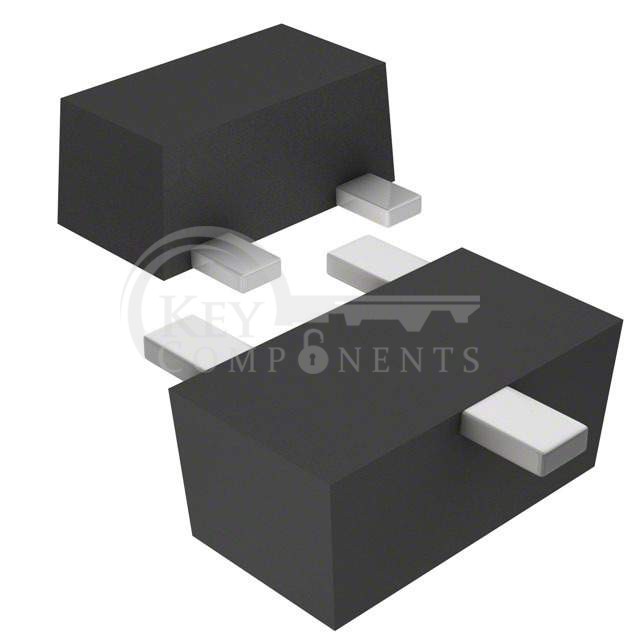

DRC9114T0L

Manufacturer Part	DRC9114T0L
Manufacturer	Panasonic Electronic Components
Description	TRANS PREBIAS NPN 125MW SSMINI3
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Discontinued at Digi-Key
Transistor Type:	NPN - Pre-Biased
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	10 kOhms
Resistor - Emitter Base (R2):	-
DC Current Gain (hFE) (Min) @ Ic, Vce:	160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:	250mV @ 500µA, 10mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	-
Power - Max:	125 mW
Mounting Type:	Surface Mount
Package / Case:	SC-89, SOT-490
Supplier Device Package:	SSMini3-F3-B
