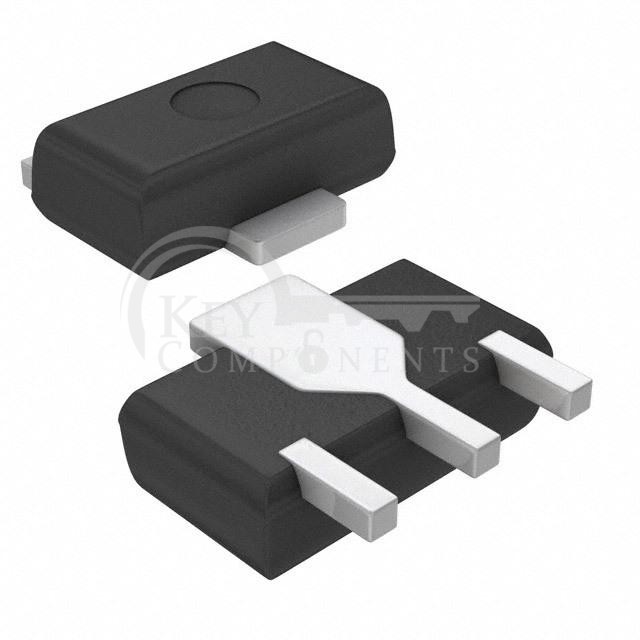

AN8009M-E1
| Manufacturer Part | AN8009M-E1 |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | IC REG LINEAR 9V 50MA 3HSIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 20V |
| Voltage - Output (Min/Fixed): | 9V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | - |
| Current - Output: | 50mA |
| Current - Quiescent (Iq): | 1.4 mA |
| Current - Supply (Max): | - |
| PSRR: | 59dB (120Hz) |
| Control Features: | - |
| Protection Features: | Over Current |
| Operating Temperature: | -30°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-243AA |
| Supplier Device Package: | 3-HSIP |
