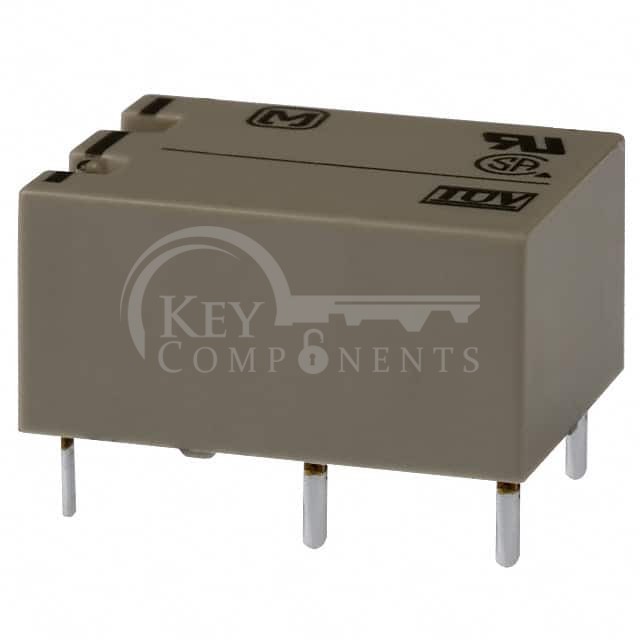

DK1A1B-L2-3V
| Manufacturer Part | DK1A1B-L2-3V |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Description | RELAY GEN PURPOSE DPST 8A 3V |
| Category | Relays |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Mounting Type: | Through Hole |
| Coil Voltage: | 3VDC |
| Contact Form: | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current): | 8 A |
| Switching Voltage: | 250VAC, 125VDC - Max |
| Coil Current: | 66.7 mA |
| Coil Type: | Latching, Dual Coil |
| Features: | - |
| Termination Style: | PC Pin |
| Seal Rating: | Sealed - Fully |
| Coil Insulation: | - |
| Must Operate Voltage: | 2.1 VDC |
| Must Release Voltage: | - |
| Operate Time: | 10 ms |
| Release Time: | 8 ms |
| Operating Temperature: | -40°C ~ 65°C |
| Contact Material: | Silver Nickel (AgNi) |
| Relay Type: | General Purpose |
