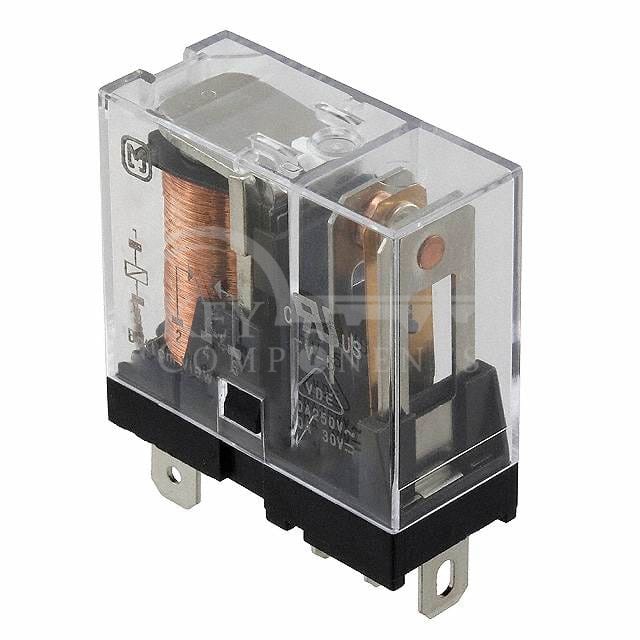

AHN12105
| Manufacturer Part | AHN12105 |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Description | RELAY GEN PURPOSE SPDT 16A 5V |
| Category | Relays |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Mounting Type: | Socketable |
| Coil Voltage: | 5VDC |
| Contact Form: | SPDT (1 Form C) |
| Contact Rating (Current): | 16 A |
| Switching Voltage: | 250VAC, 30VDC - Max |
| Coil Current: | 106.4 mA |
| Coil Type: | Non Latching |
| Features: | Lighted Indicator |
| Termination Style: | Plug In |
| Seal Rating: | - |
| Coil Insulation: | - |
| Must Operate Voltage: | 3.5 VDC |
| Must Release Voltage: | 0.75 VDC |
| Operate Time: | 15 ms |
| Release Time: | 5 ms |
| Operating Temperature: | -40°C ~ 50°C |
| Contact Material: | Silver Tin Oxide (AgSnO) |
| Relay Type: | General Purpose |
