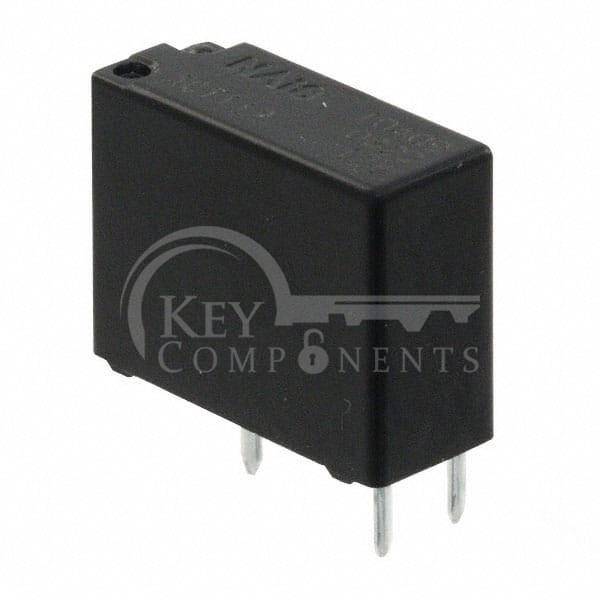

ACT112
| Manufacturer Part | ACT112 |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Description | RELAY AUTOMOTIVE SPDT 20A 12V |
| Category | Relays |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Coil Type: | Non Latching |
| Coil Current: | 66.7 mA |
| Coil Voltage: | 12VDC |
| Contact Form: | SPDT (1 Form C) |
| Contact Rating (Current): | 20 A |
| Switching Voltage: | 14VDC - Nom |
| Must Operate Voltage: | 7.2 VDC |
| Must Release Voltage: | 1 VDC |
| Operate Time: | 10 ms |
| Release Time: | 10 ms |
| Features: | - |
| Mounting Type: | Through Hole |
| Termination Style: | PC Pin |
| Operating Temperature: | -40°C ~ 85°C |
