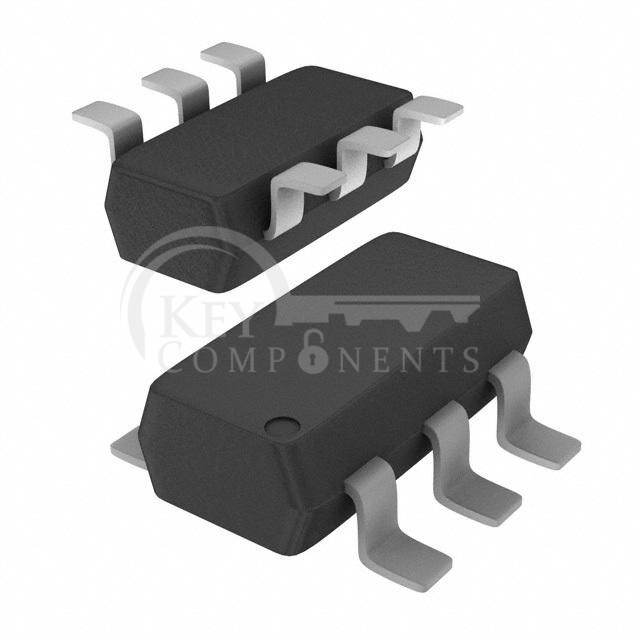

SZNUD3160DMT1G
| Manufacturer Part | SZNUD3160DMT1G |
|---|---|
| Manufacturer | onsemi |
| Description | IC PWR DRIVER N-CHANNEL 1:1 SC74 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Type: | Relay, Solenoid Driver |
| Number of Outputs: | 2 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | Low Side |
| Output Type: | N-Channel |
| Interface: | On/Off |
| Voltage - Load: | 61V (Max) |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 150mA |
| Rds On (Typ): | 1.8Ohm (Max) |
| Input Type: | - |
| Features: | - |
| Fault Protection: | - |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SC-74 |
| Package / Case: | SC-74, SOT-457 |
