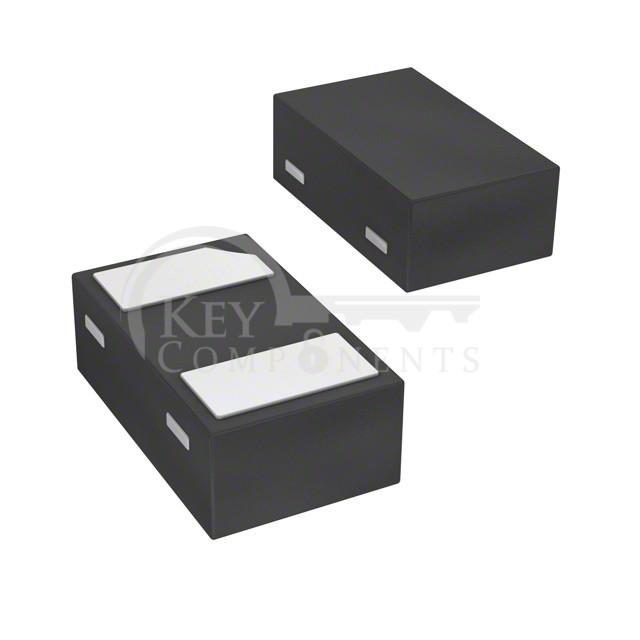

SZESD7471N2T5G
| Manufacturer Part | SZESD7471N2T5G |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 5.3VWM 2XDFN |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 5.3V (Max) |
| Voltage - Breakdown (Min): | 7V |
| Voltage - Clamping (Max) @ Ipp: | - |
| Current - Peak Pulse (10/1000µs): | - |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | Automotive, RF Antenna |
| Capacitance @ Frequency: | 0.24pF @ 1MHz |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 2-XDFN |
| Supplier Device Package: | 2-XDFN (1x0.6) (SOD-882) |
