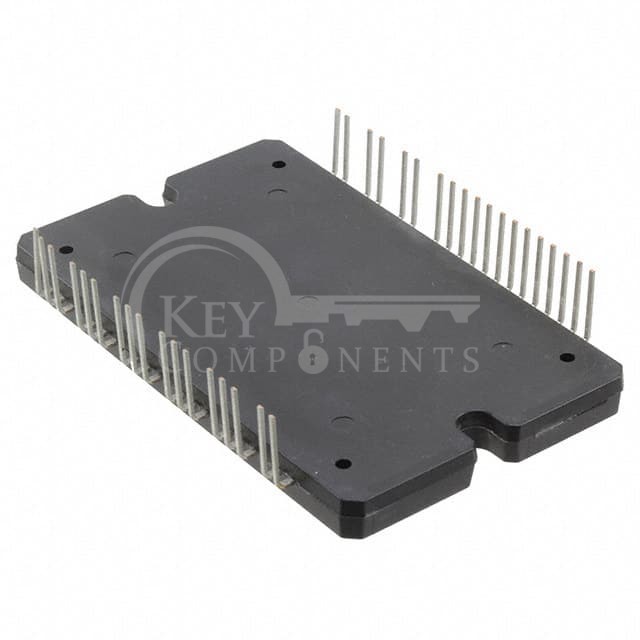

STK5F1U3E2D-E
| Manufacturer Part | STK5F1U3E2D-E |
|---|---|
| Manufacturer | onsemi |
| Description | IC BRIDGE DRIVER PAR 4DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Half Bridge (3) |
| Applications: | AC Motors |
| Interface: | Logic |
| Load Type: | Inductive |
| Technology: | IGBT |
| Rds On (Typ): | - |
| Current - Output / Channel: | 50A |
| Current - Peak Output: | 76A |
| Voltage - Supply: | 12.5V ~ 17.5V |
| Voltage - Load: | 450V (Max) |
| Operating Temperature: | -20°C ~ 150°C (TJ) |
| Features: | Bootstrap Circuit, Status Flag |
| Fault Protection: | Current Limiting, UVLO |
| Mounting Type: | Through Hole |
| Package / Case: | 44-DIP Module, 37 Leads |
| Supplier Device Package: | 44-DIP |
