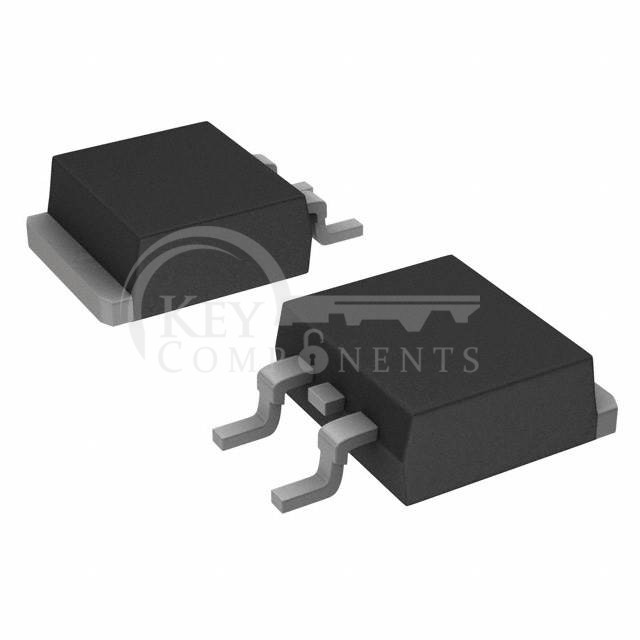

SGB8206ANTF4G

Manufacturer Part	SGB8206ANTF4G
Manufacturer	onsemi
Description	IGBT 20A, 350V, N-CHANNEL
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	390 V
Current - Collector (Ic) (Max):	20 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	1.9V @ 4.5V, 20A
Power - Max:	150 W
Switching Energy:	-
Input Type:	Logic
Gate Charge:	-
Td (on/off) @ 25°C:	-
Test Condition:	-
Reverse Recovery Time (trr):	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
