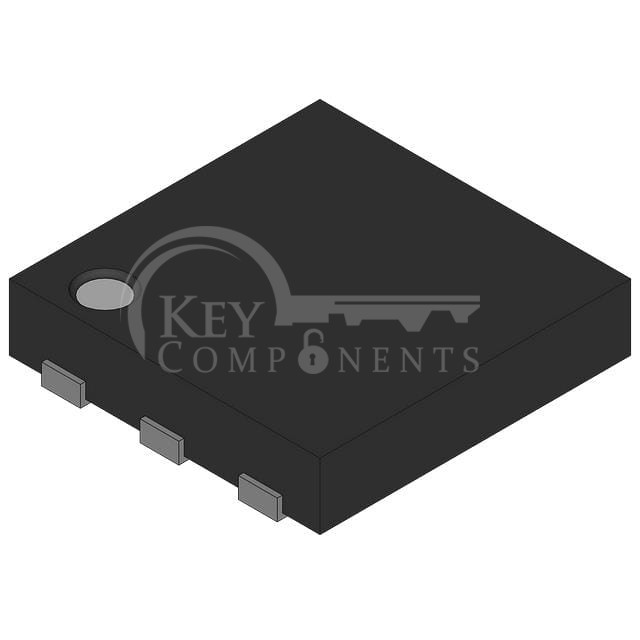

NTLJD2105LTBG
| Manufacturer Part | NTLJD2105LTBG |
|---|---|
| Manufacturer | onsemi |
| Description | MOSFET N/P-CH 8V 2.5A 6-WDFN |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| FET Type: | N and P-Channel |
| FET Feature: | Standard |
| Drain to Source Voltage (Vdss): | 8V |
| Current - Continuous Drain (Id) @ 25°C: | 2.5A |
| Rds On (Max) @ Id, Vgs: | 50mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id: | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | - |
| Input Capacitance (Ciss) (Max) @ Vds: | - |
| Power - Max: | 520mW |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-WDFN Exposed Pad |
| Supplier Device Package: | 6-WDFN (2x2) |
