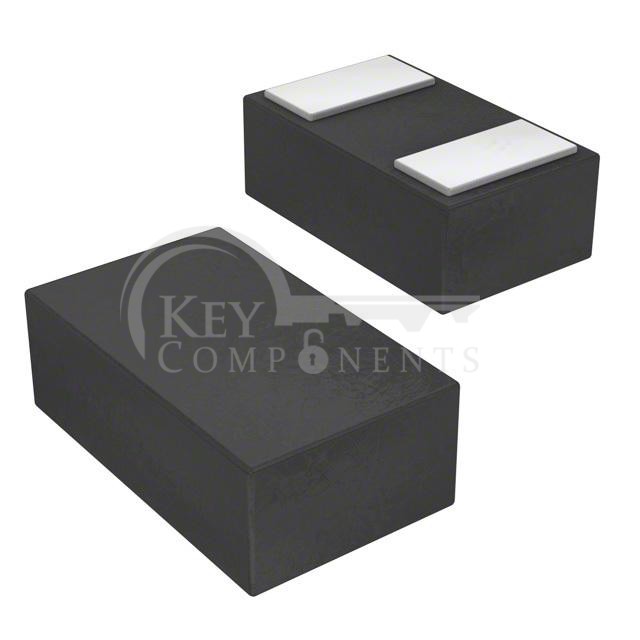

NSR02F30MXT5G
| Manufacturer Part | NSR02F30MXT5G |
|---|---|
| Manufacturer | onsemi |
| Description | DIODE SCHOTTKY 30V 200MA 2DFN |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Diode Type: | Schottky |
| Voltage - DC Reverse (Vr) (Max): | 30 V |
| Current - Average Rectified (Io): | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If: | 600 mV @ 200 mA |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | - |
| Current - Reverse Leakage @ Vr: | 50 µA @ 30 V |
| Capacitance @ Vr, F: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0201 (0603 Metric) |
| Supplier Device Package: | 2-X3DFN (0.6x0.3) (0201) |
| Operating Temperature - Junction: | -55°C ~ 125°C |
