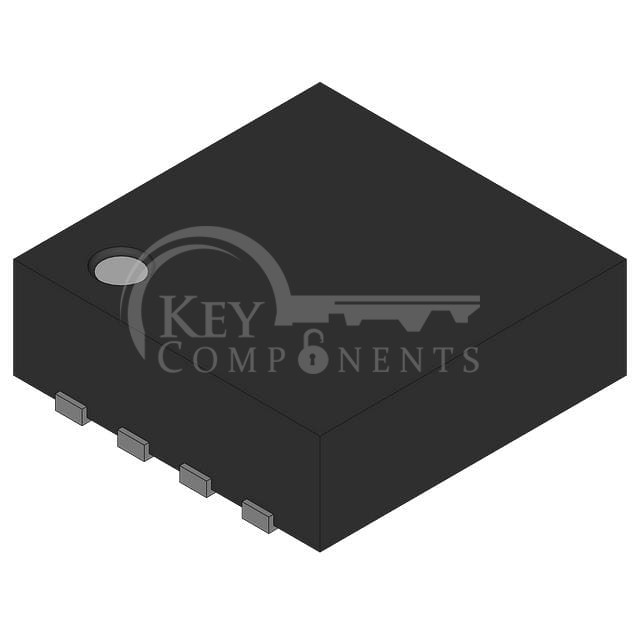

NLSX5002BMUTCG
| Manufacturer Part | NLSX5002BMUTCG |
|---|---|
| Manufacturer | onsemi |
| Description | DUAL-SUPPLY LEVEL TRANSLATOR |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Translator Type: | Voltage Level |
| Channel Type: | Bidirectional |
| Number of Circuits: | 1 |
| Channels per Circuit: | 2 |
| Voltage - VCCA: | 0.9 V ~ 4.5 V |
| Voltage - VCCB: | 0.9 V ~ 4.5 V |
| Input Signal: | - |
| Output Signal: | - |
| Output Type: | Tri-State, Non-Inverted |
| Data Rate: | 140Mbps |
| Operating Temperature: | -55°C ~ 125°C (TA) |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-UFQFN |
| Supplier Device Package: | 8-UQFN (1.4x1.2) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
