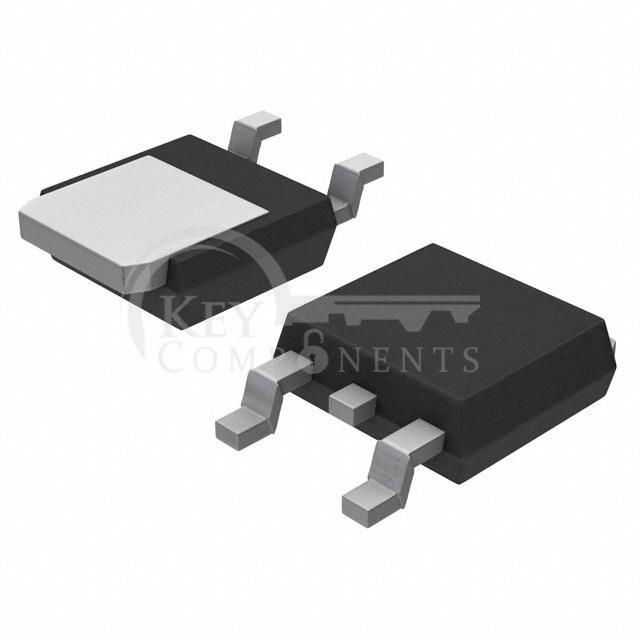

NID9N05ACLT4G
| Manufacturer Part | NID9N05ACLT4G |
|---|---|
| Manufacturer | onsemi |
| Description | IC PWR DRIVER N-CHANNEL 1:1 DPAK |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Type: | Relay, Solenoid Driver |
| Number of Outputs: | 1 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | Low Side |
| Output Type: | N-Channel |
| Interface: | On/Off |
| Voltage - Load: | 52V (Max) |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 9A |
| Rds On (Typ): | 90mOhm |
| Input Type: | Non-Inverting |
| Features: | - |
| Fault Protection: | Over Voltage |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | DPAK |
| Package / Case: | TO-252-3, DPak (2 Leads + Tab), SC-63 |
