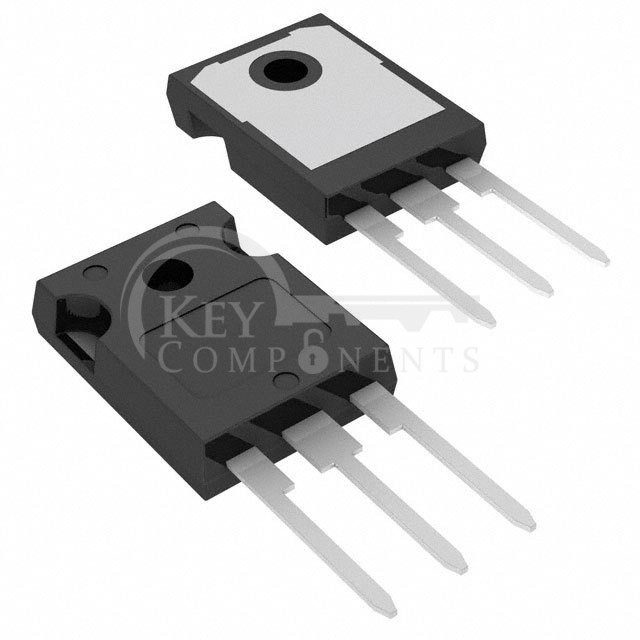

NGTB25N120SWG

Manufacturer Part	NGTB25N120SWG
Manufacturer	onsemi
Description	IGBT 25A 1200V TO-247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	50 A
Current - Collector Pulsed (Icm):	100 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 25A
Power - Max:	385 W
Switching Energy:	1.95mJ (on), 600µJ (off)
Input Type:	Standard
Gate Charge:	178 nC
Td (on/off) @ 25°C:	87ns/179ns
Test Condition:	600V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr):	154 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3
