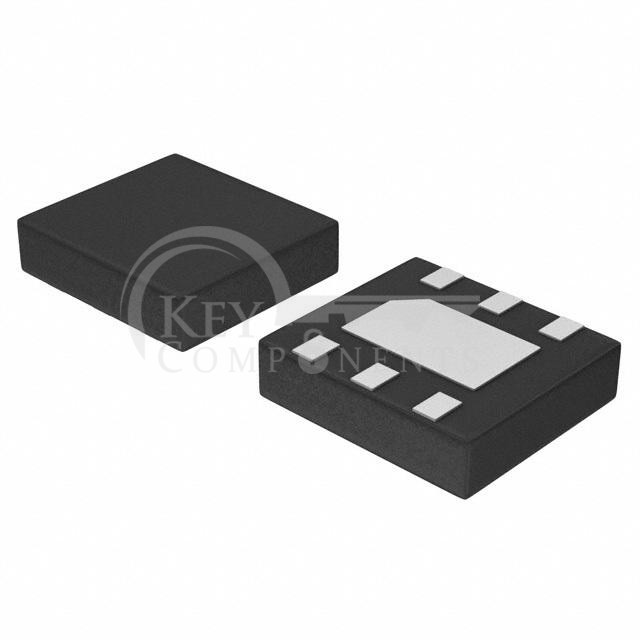

NCV451AMNWTBG

NCV451AMNWTBG

Manufacturer Part NCV451AMNWTBG
Manufacturer onsemi
Description IC PWR SWITCH N-CHANNEL 1:1 6DFN
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Type:General Purpose
Number of Outputs:2
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:3.6V ~ 5.5V
Voltage - Supply (Vcc/Vdd):0.75V ~ 5.25V
Current - Output (Max):3A
Rds On (Typ):21mOhm
Input Type:Non-Inverting
Features:-
Fault Protection:-
Operating Temperature:-40°C ~ 105°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:6-DFNW (2x2.2)
Package / Case:6-VDFN Exposed Pad
