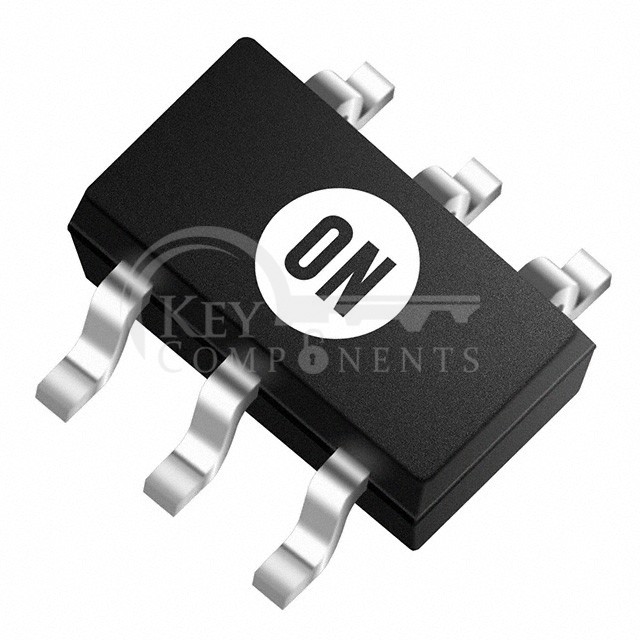

NCS199A2SQT2G
| Manufacturer Part | NCS199A2SQT2G |
|---|---|
| Manufacturer | onsemi |
| Description | IC CURRENT SENSE 1 CIRCUIT SC88 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Amplifier Type: | Current Sense |
| Number of Circuits: | 1 |
| Output Type: | Rail-to-Rail |
| Slew Rate: | 0.4V/µs |
| Gain Bandwidth Product: | - |
| -3db Bandwidth: | 60 kHz |
| Current - Input Bias: | 60 µA |
| Voltage - Input Offset: | 5 µV |
| Current - Supply: | 65µA |
| Current - Output / Channel: | - |
| Voltage - Supply Span (Min): | 2.7 V |
| Voltage - Supply Span (Max): | 26 V |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package: | SC-88/SC70-6/SOT-363 |
