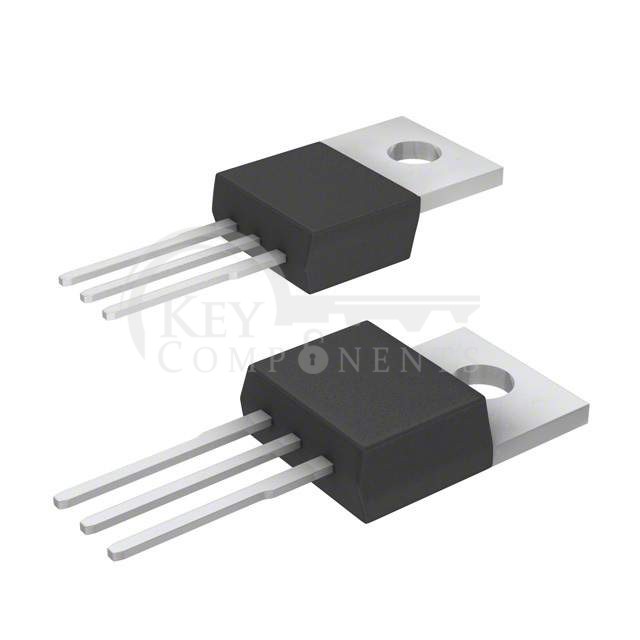

NCP7812TG
| Manufacturer Part | NCP7812TG |
|---|---|
| Manufacturer | onsemi |
| Description | IC REG LINEAR 12V 1A TO220-3 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 35V |
| Voltage - Output (Min/Fixed): | 12V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | 2V @ 1A (Typ) |
| Current - Output: | 1A |
| Current - Quiescent (Iq): | 8 mA |
| Current - Supply (Max): | - |
| PSRR: | 71dB (120Hz) |
| Control Features: | - |
| Protection Features: | Over Temperature, Short Circuit |
| Operating Temperature: | 0°C ~ 125°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | TO-220-3 |
| Supplier Device Package: | TO-220 |
