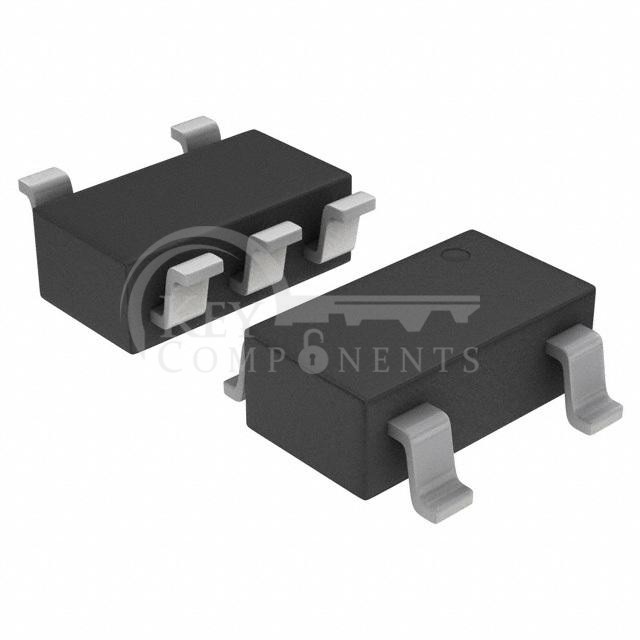

NCP5007SNT1G
| Manufacturer Part | NCP5007SNT1G |
|---|---|
| Manufacturer | onsemi |
| Description | IC LED DRVR RGLTR PWM 50MA 5TSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | DC DC Regulator |
| Topology: | Step-Up (Boost) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 1 |
| Voltage - Supply (Min): | 2.7V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | 24.5V |
| Current - Output / Channel: | 50mA |
| Frequency: | - |
| Dimming: | PWM |
| Applications: | Backlight |
| Operating Temperature: | -25°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package: | 5-TSOP |
