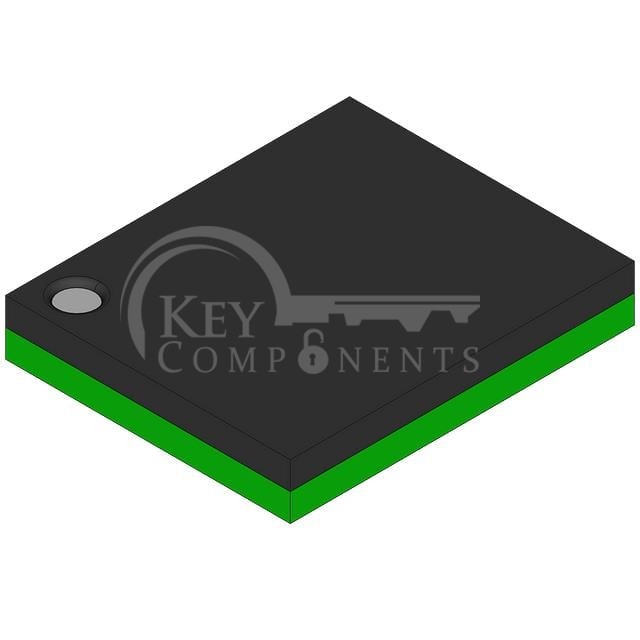

NCP3902FCCTBG
| Manufacturer Part | NCP3902FCCTBG |
|---|---|
| Manufacturer | onsemi |
| Description | IC PWR SWITCH P-CHAN 2:1 20WLCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Type: | General Purpose |
| Number of Outputs: | 1 |
| Ratio - Input:Output: | 2:1 |
| Output Configuration: | High Side |
| Output Type: | P-Channel |
| Interface: | USB |
| Voltage - Load: | 2.3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd): | 9V ~ 15V |
| Current - Output (Max): | 5A |
| Rds On (Typ): | 95mOhm |
| Input Type: | Differential |
| Features: | Sleep Mode |
| Fault Protection: | Current Limiting, Over Temperature, UVLO |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 20-WLCSP (1.66x2.26) |
| Package / Case: | 20-UFBGA, WLCSP |
