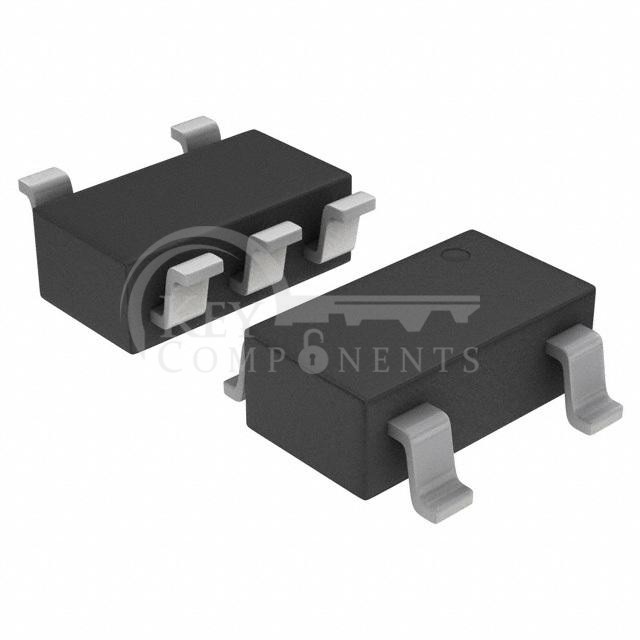

NCP301LSN22T1G
| Manufacturer Part | NCP301LSN22T1G |
|---|---|
| Manufacturer | onsemi |
| Description | IC SUPERVISOR 1 CHANNEL 5TSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Simple Reset/Power-On Reset |
| Number of Voltages Monitored: | 1 |
| Voltage - Threshold: | 2.2V |
| Output: | Open Drain or Open Collector |
| Reset: | Active Low |
| Reset Timeout: | - |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package: | 5-TSOP |
