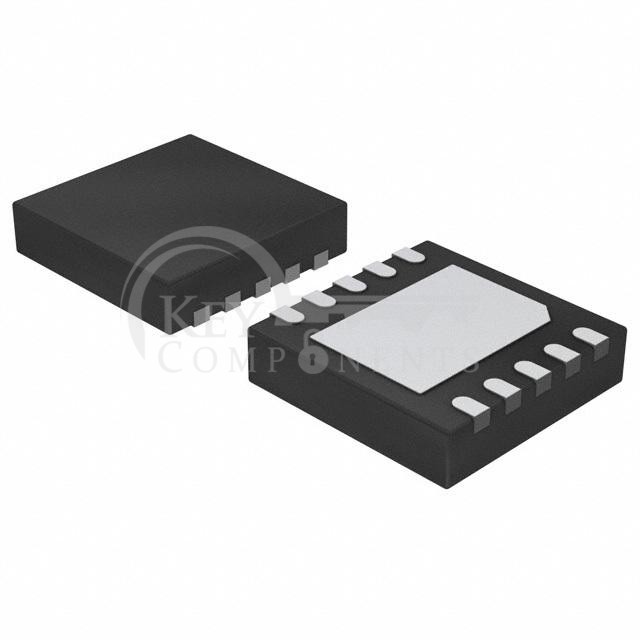

NCP2809BMUTXG
| Manufacturer Part | NCP2809BMUTXG |
|---|---|
| Manufacturer | onsemi |
| Description | IC AMP CLSS AB STER 135MW 10UDFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Class AB |
| Output Type: | Headphones, 2-Channel (Stereo) |
| Max Output Power x Channels @ Load: | 135mW x 2 @ 16Ohm |
| Voltage - Supply: | 2.2V ~ 5.5V |
| Features: | Depop, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 10-UDFN (3x3) |
| Package / Case: | 10-UFDFN Exposed Pad |
