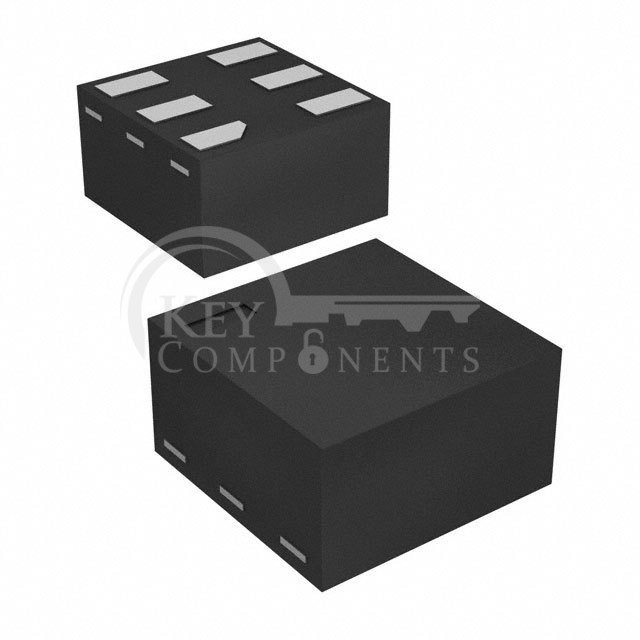

NC7SZ58FHX
| Manufacturer Part | NC7SZ58FHX |
|---|---|
| Manufacturer | onsemi |
| Description | IC GATE AND 2INPUT 6-MICROPAK |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Configurable Multiple Function |
| Number of Circuits: | 1 |
| Number of Inputs: | 3 |
| Schmitt Trigger Input: | No |
| Output Type: | Single-Ended |
| Current - Output High, Low: | 32mA, 32mA |
| Voltage - Supply: | 1.65V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-UFDFN |
| Supplier Device Package: | 6-MicroPak2™ |
