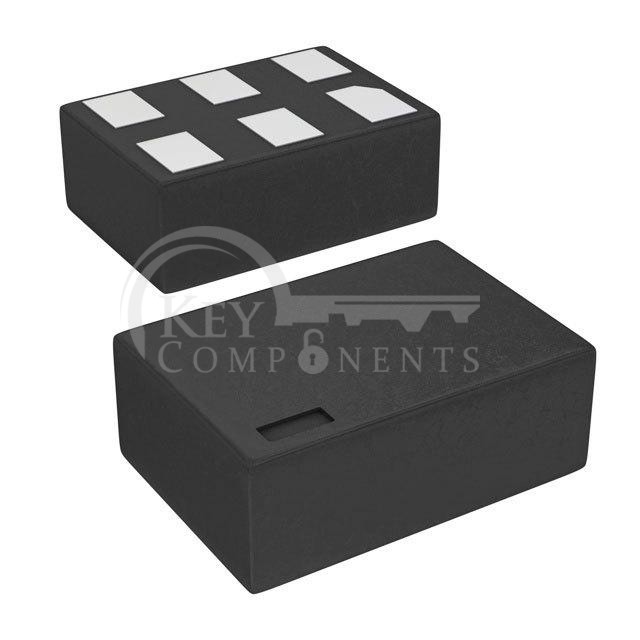

NC7S14L6X
| Manufacturer Part | NC7S14L6X |
|---|---|
| Manufacturer | onsemi |
| Description | IC INVERTER 1CH 1-INP 6MICROPAK |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Inverter |
| Number of Circuits: | 1 |
| Number of Inputs: | 1 |
| Features: | Schmitt Trigger |
| Voltage - Supply: | 2V ~ 6V |
| Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 2.6mA, 2.6mA |
| Logic Level - Low: | 0.3V ~ 1.5V |
| Logic Level - High: | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL: | 17ns @ 6V, 50pF |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 6-MicroPak |
| Package / Case: | 6-UFDFN |
