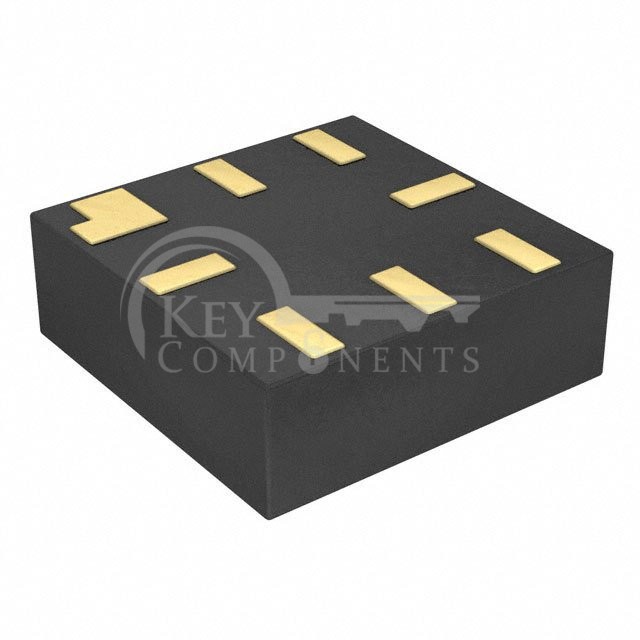

NC7NZ17L8X
| Manufacturer Part | NC7NZ17L8X |
|---|---|
| Manufacturer | onsemi |
| Description | IC BUF NON-INVERT 5.5V 8MICROPAK |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Buffer, Non-Inverting |
| Number of Elements: | 3 |
| Number of Bits per Element: | 1 |
| Input Type: | Schmitt Trigger |
| Output Type: | Push-Pull |
| Current - Output High, Low: | 32mA, 32mA |
| Voltage - Supply: | 1.65V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-UFQFN |
| Supplier Device Package: | 8-MicroPak™ |
