MMQA15VT1
| Manufacturer Part | MMQA15VT1 |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 11VWM 21.7VC SC74 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Zener |
| Unidirectional Channels: | 4 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 11V (Max) |
| Voltage - Breakdown (Min): | 14.3V |
| Voltage - Clamping (Max) @ Ipp: | 21.7V |
| Current - Peak Pulse (10/1000µs): | 1.1A (8/20µs) |
| Power - Peak Pulse: | 150W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |

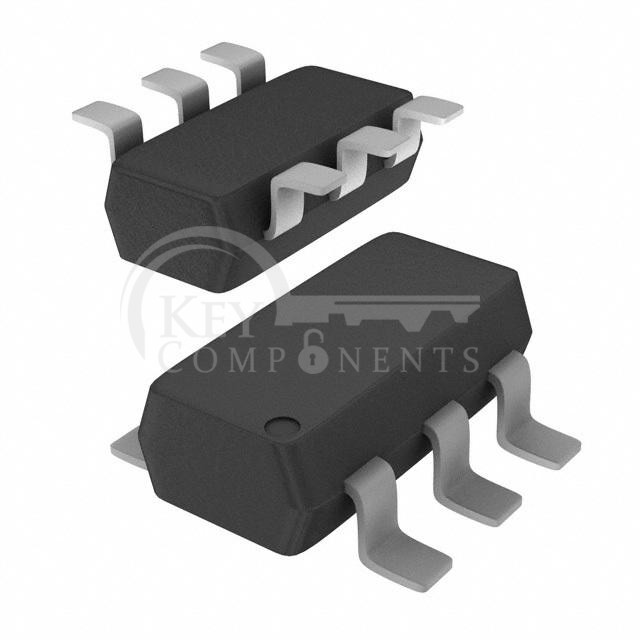

| Package / Case: | SC-74, SOT-457 |
| Supplier Device Package: | SC-74 |
