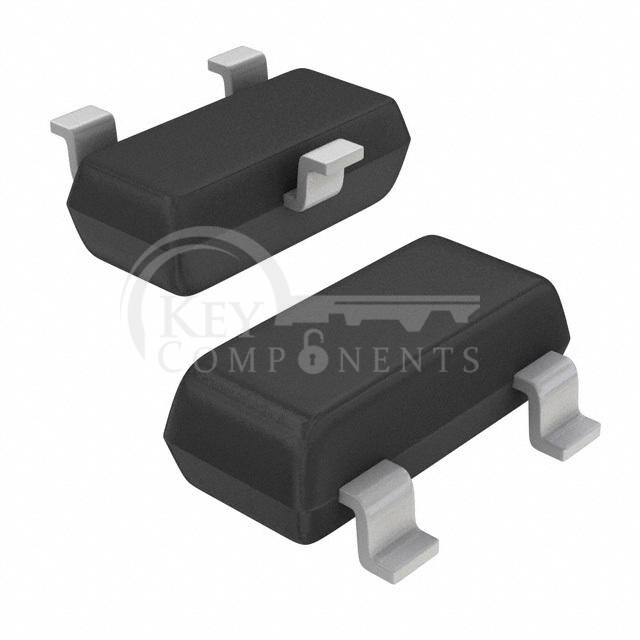

MMBV409LT1
| Manufacturer Part | MMBV409LT1 |
|---|---|
| Manufacturer | onsemi |
| Description | DIODE TUNING SS 20V SOT-23 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Capacitance @ Vr, F: | 32pF @ 3V, 1MHz |
| Capacitance Ratio: | 1.9 |
| Capacitance Ratio Condition: | C3/C8 |
| Voltage - Peak Reverse (Max): | 20 V |
| Diode Type: | Single |
| Q @ Vr, F: | 200 @ 3V, 50MHz |
| Operating Temperature: | 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 (TO-236) |
