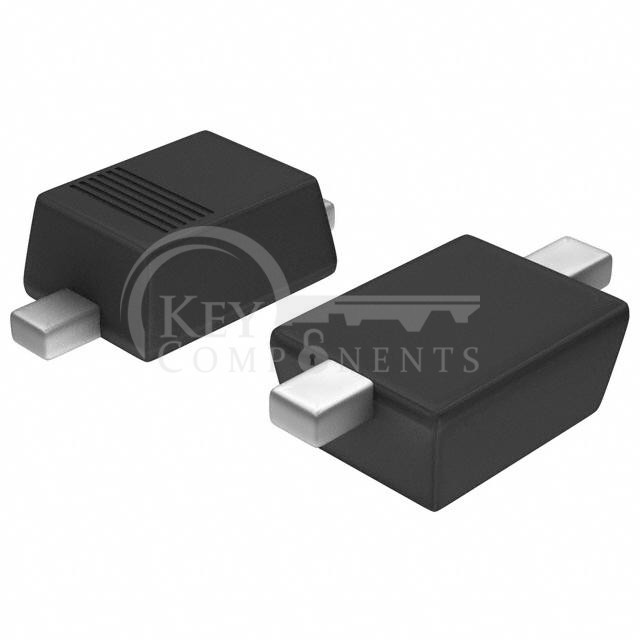

MM3Z5V1B
| Manufacturer Part | MM3Z5V1B |
|---|---|
| Manufacturer | onsemi |
| Description | DIODE ZENER 5.1V 200MW SOD323F |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 5.1 V |
| Tolerance: | ±2% |
| Power - Max: | 200 mW |
| Impedance (Max) (Zzt): | 56 Ohms |
| Current - Reverse Leakage @ Vr: | 1.8 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 10 mA |
| Operating Temperature: | -65°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-90, SOD-323F |
| Supplier Device Package: | SOD-323F |
