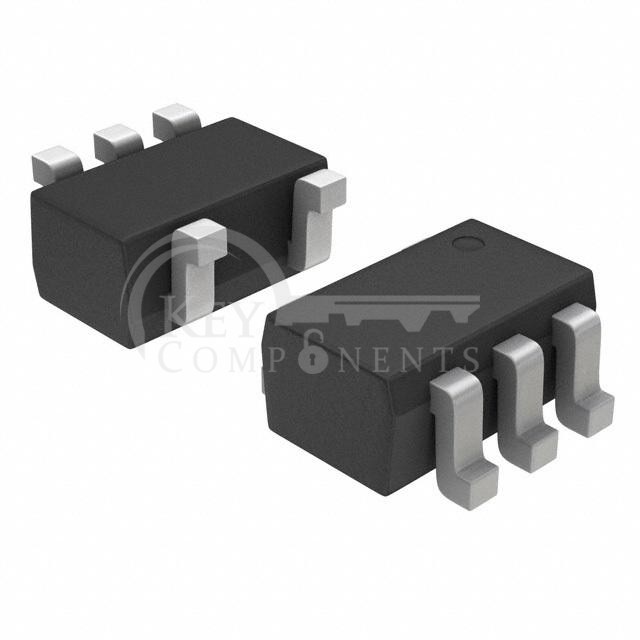

MC74VHC1G03DFT1G
| Manufacturer Part | MC74VHC1G03DFT1G |
|---|---|
| Manufacturer | onsemi |
| Description | IC GATE NOR OD 1CH 2-INP SC88A |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | NOR Gate |
| Number of Circuits: | 1 |
| Number of Inputs: | 2 |
| Features: | Open Drain |
| Voltage - Supply: | 2V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | -, 8mA |
| Logic Level - Low: | 0.5V ~ 1.65V |
| Logic Level - High: | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL: | 7.5ns @ 5V, 50pF |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SC-88A (SC-70-5/SOT-353) |
| Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
