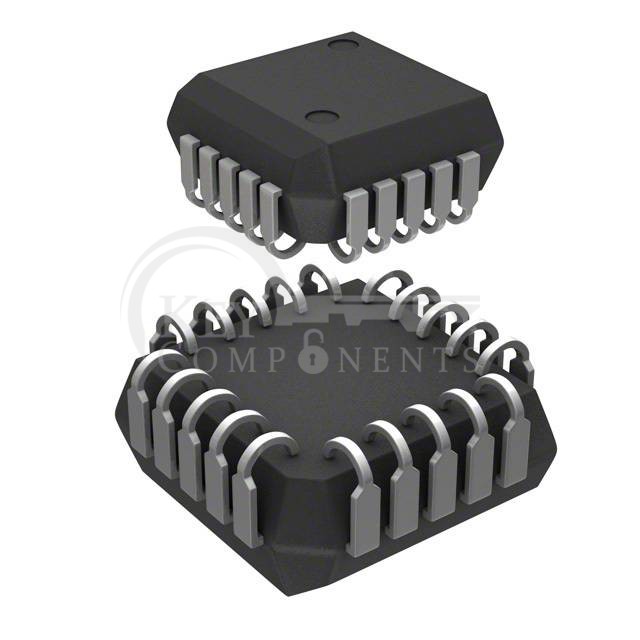

MC10H210FN
| Manufacturer Part | MC10H210FN |
|---|---|
| Manufacturer | onsemi |
| Description | IC GATE OR 2CH 3-INP 20PLCC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | OR Gate |
| Number of Circuits: | 2 |
| Number of Inputs: | 3 |
| Features: | 3 Outputs |
| Voltage - Supply: | -4.94V ~ -5.46V |
| Current - Quiescent (Max): | - |
| Current - Output High, Low: | 50mA, 50mA |
| Logic Level - Low: | -1.48V |
| Logic Level - High: | -1.13V |
| Max Propagation Delay @ V, Max CL: | 1.55ns @ -5.2V, - |
| Operating Temperature: | 0°C ~ 75°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 20-PLCC (9x9) |
| Package / Case: | 20-LCC (J-Lead) |
