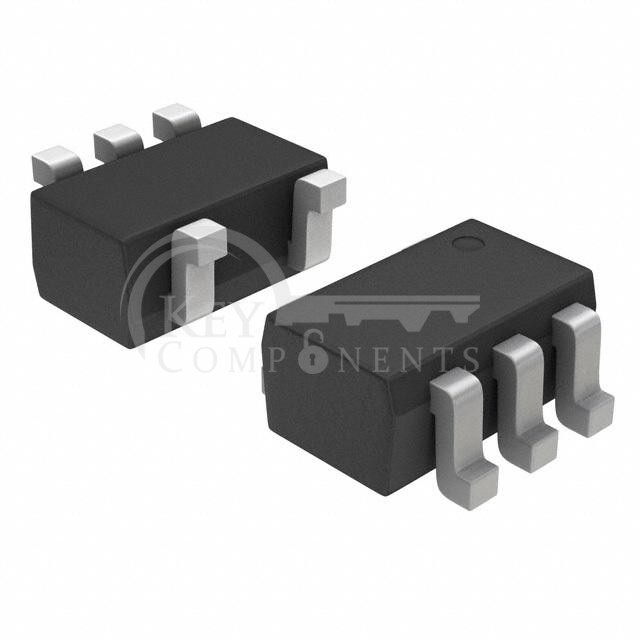

M74VHC1G135DFT2G
| Manufacturer Part | M74VHC1G135DFT2G |
|---|---|
| Manufacturer | onsemi |
| Description | IC GATE NAND 1CH 2IN SC88A |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | NAND Gate |
| Number of Circuits: | 1 |
| Number of Inputs: | 2 |
| Features: | Schmitt Trigger, Open Drain |
| Voltage - Supply: | 2V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | -, 8mA |
| Logic Level - Low: | 0.65V ~ 1.45V |
| Logic Level - High: | 2.25V ~ 3.7V |
| Max Propagation Delay @ V, Max CL: | 9.7ns @ 5V, 50pF |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SC-88A (SC-70-5/SOT-353) |
| Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
