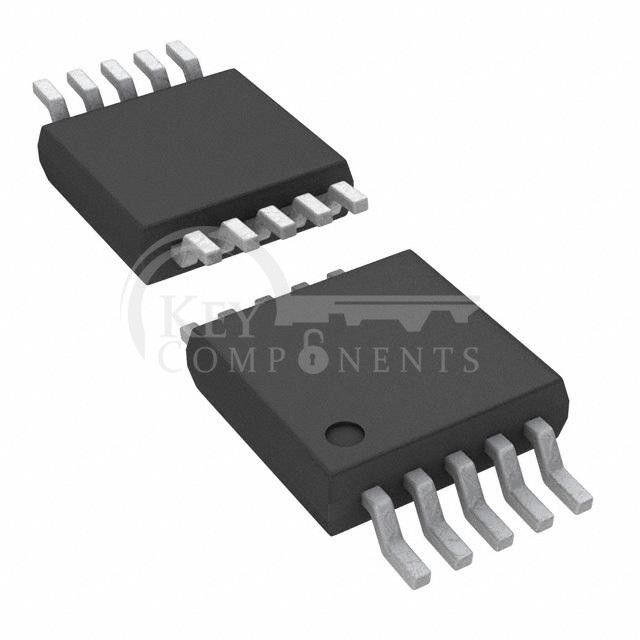

LV8548MCZ-AH
| Manufacturer Part | LV8548MCZ-AH |
|---|---|
| Manufacturer | onsemi |
| Description | IC BRIDGE DRIVER PAR 10SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Half Bridge (4) |
| Applications: | DC Motors, General Purpose, Stepper Motors |
| Interface: | Logic |
| Load Type: | Inductive |
| Technology: | DMOS |
| Rds On (Typ): | 1Ohm |
| Current - Output / Channel: | 1A |
| Current - Peak Output: | - |
| Voltage - Supply: | 4V ~ 16V |
| Voltage - Load: | 4V ~ 16V |
| Operating Temperature: | -30°C ~ 85°C (TA) |
| Features: | - |
| Fault Protection: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 10-SOIC |
