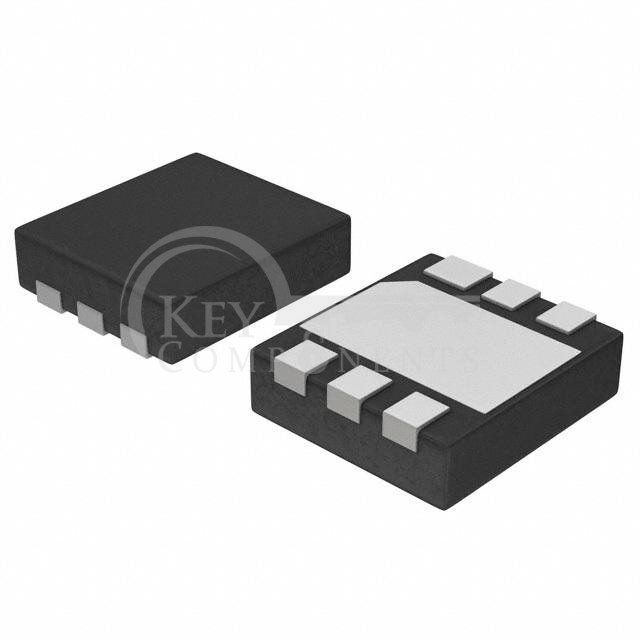

LV52205MUTBG
| Manufacturer Part | LV52205MUTBG |
|---|---|
| Manufacturer | onsemi |
| Description | IC LED DRV RGLTR PWM 700MA 6UDFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | DC DC Regulator |
| Topology: | Step-Up (Boost) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 1 |
| Voltage - Supply (Min): | 2.7V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | - |
| Current - Output / Channel: | 700mA (Switch) |
| Frequency: | 600kHz |
| Dimming: | PWM |
| Applications: | Backlight |
| Operating Temperature: | -30°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-UDFN Exposed Pad |
| Supplier Device Package: | 6-UDFN (2x2) |
