Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Technology: | Optical Coupling |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Common Mode Transient Immunity (Min): | 10kV/µs |
| Propagation Delay tpLH / tpHL (Max): | 500ns, 500ns |
| Pulse Width Distortion (Max): | - |
| Rise / Fall Time (Typ): | 75ns, 55ns |
| Current - Output High, Low: | 500mA, 500mA |
| Current - Peak Output: | 1.5A |
| Voltage - Forward (Vf) (Typ): | 1.5V |
| Current - DC Forward (If) (Max): | 25 mA |
| Voltage - Output Supply: | 10V ~ 20V |
| Operating Temperature: | -20°C ~ 85°C |
| Mounting Type: | Surface Mount |

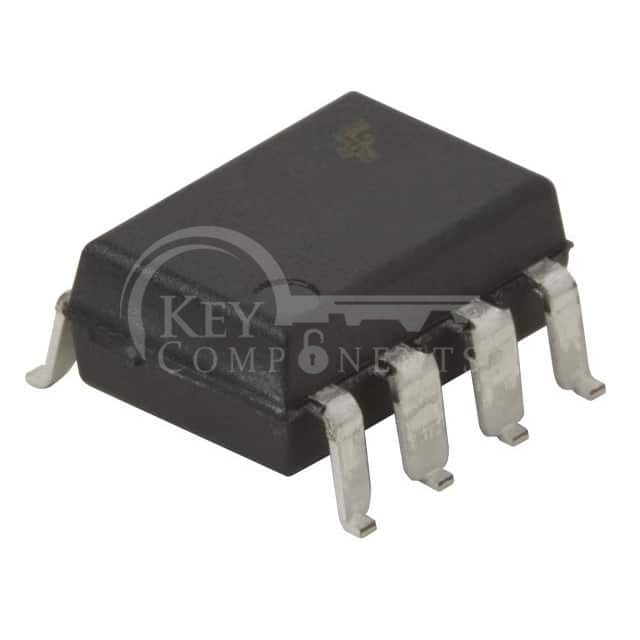

| Package / Case: | 8-SMD, Gull Wing |
| Supplier Device Package: | 8-SMD |
| Approval Agency: | cUL, UL |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
