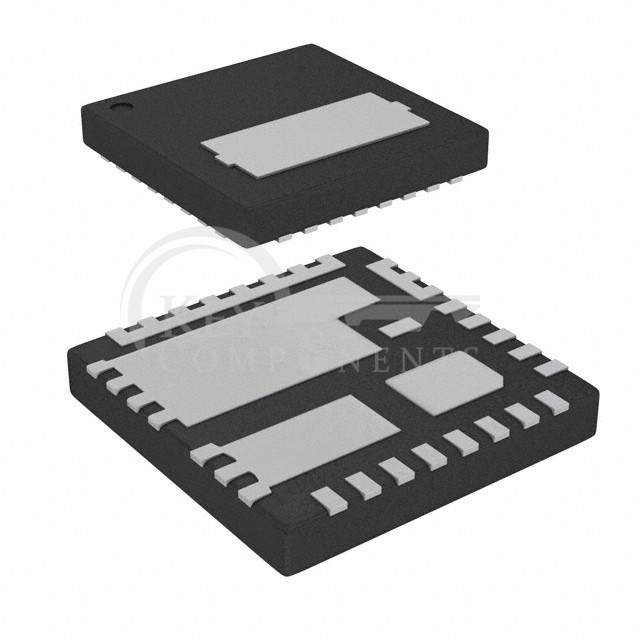

FDMF5821DC
| Manufacturer Part | FDMF5821DC |
|---|---|
| Manufacturer | onsemi |
| Description | IC SPS HALF-BRIDGE DRVR 31PQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Half Bridge |
| Applications: | Synchronous Buck Converters |
| Interface: | PWM |
| Load Type: | Inductive |
| Technology: | UMOS |
| Rds On (Typ): | 470mOhm LS, 680mOhm HS |
| Current - Output / Channel: | 60A |
| Current - Peak Output: | - |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Voltage - Load: | 4.5V ~ 16V |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Features: | Bootstrap Circuit, Latch Function, Status Flag |
| Fault Protection: | Over Temperature, UVLO |
| Mounting Type: | Surface Mount |
| Package / Case: | 31-PowerWFQFN |
| Supplier Device Package: | 31-PQFN (5x5) |
