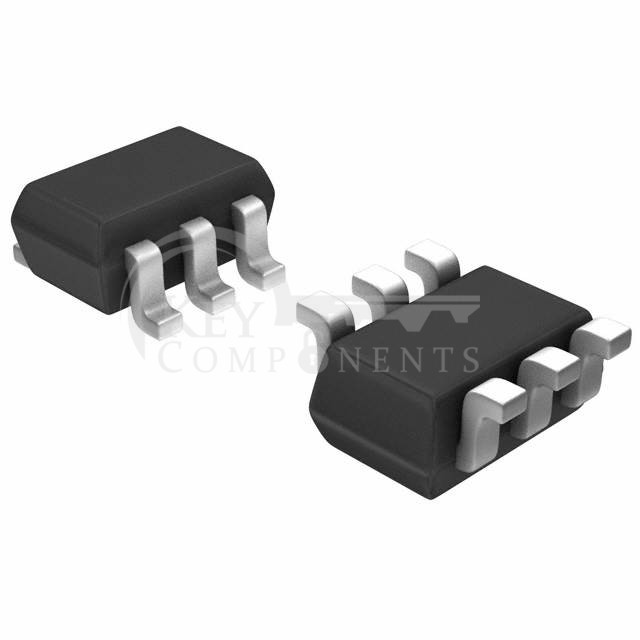

FDG6301N

Manufacturer Part	FDG6301N
Manufacturer	onsemi
Description	MOSFET 2N-CH 25V 0.22A SC70-6
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	25V
Current - Continuous Drain (Id) @ 25°C:	220mA
Rds On (Max) @ Id, Vgs:	4Ohm @ 220mA, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	9.5pF @ 10V
Power - Max:	300mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-88 (SC-70-6)
