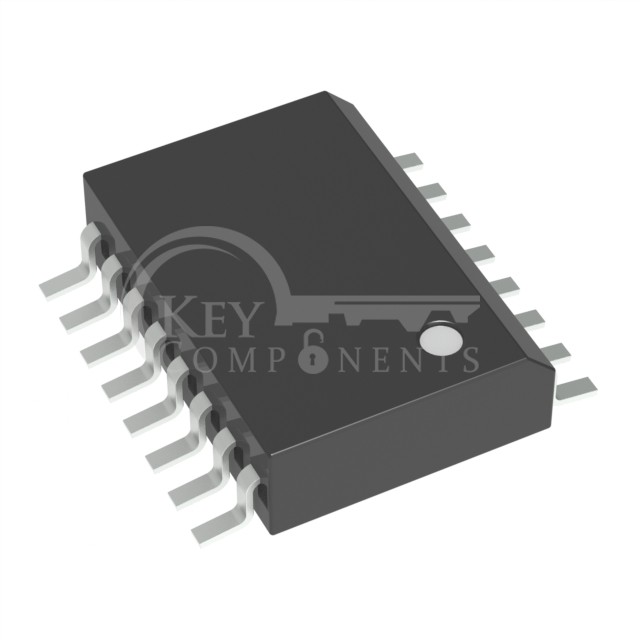

CS5101EDWR16G
| Manufacturer Part | CS5101EDWR16G |
|---|---|
| Manufacturer | onsemi |
| Description | IC SECONDARY SIDE CTRLR 16SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Applications: | Secondary-Side Controller |
| Voltage - Input: | - |
| Voltage - Supply: | 8V ~ 45V |
| Current - Supply: | 12 mA |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC |
