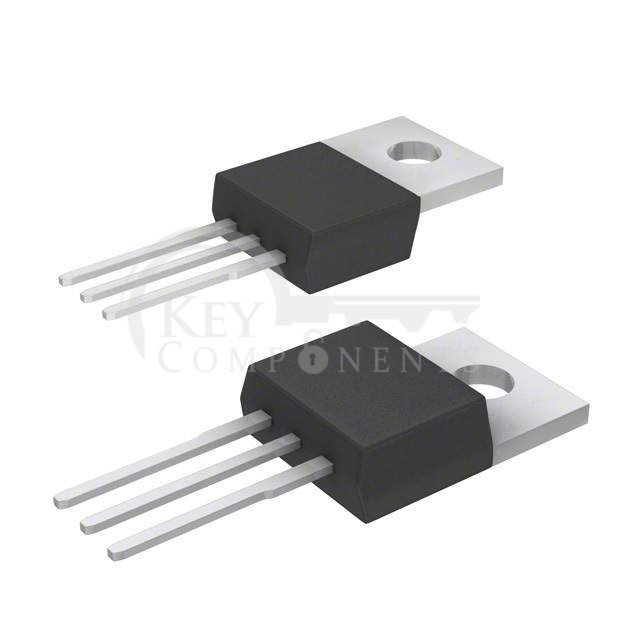

BTA25H-600CW3G
| Manufacturer Part | BTA25H-600CW3G |
|---|---|
| Manufacturer | onsemi |
| Description | 4 QUADRANT LOGIC LEVEL TRIAC, 60 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Triac Type: | Standard |
| Voltage - Off State: | 600 V |
| Current - On State (It (RMS)) (Max): | 25 A |
| Voltage - Gate Trigger (Vgt) (Max): | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 250A @ 60Hz |
| Current - Gate Trigger (Igt) (Max): | 35 mA |
| Current - Hold (Ih) (Max): | 50 mA |
| Configuration: | Single |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | TO-220-3 |
| Supplier Device Package: | TO-220AB |
