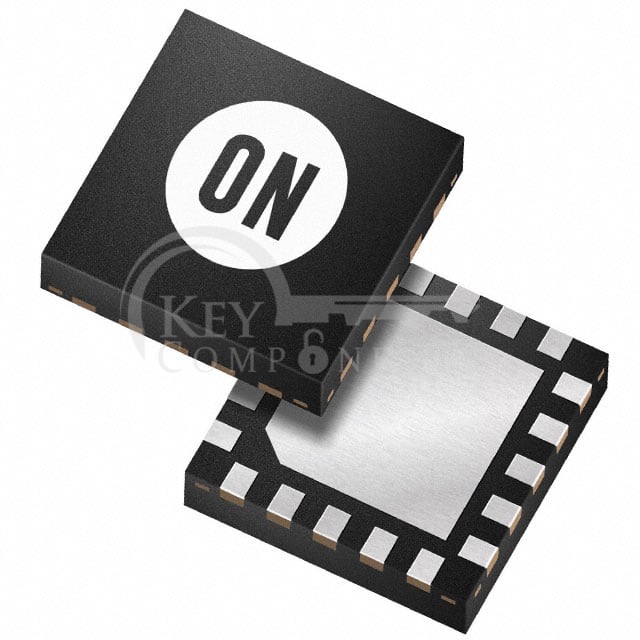

AX5243-1-TA05
| Manufacturer Part | AX5243-1-TA05 |
|---|---|
| Manufacturer | onsemi |
| Description | IC RF TXRX ISM<1GHZ 20VFQFN |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Discontinued at Digi-Key |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Protocol: | - |
| Modulation: | 4FSK, ASK, FSK, GFSK, GMSK, MSK, PSK |
| Frequency: | 27MHz ~ 1.05GHz |
| Data Rate (Max): | 125kbps |
| Power - Output: | 16dBm (Max) |
| Sensitivity: | -137dBm |
| Memory Size: | - |
| Serial Interfaces: | SPI |
| GPIO: | - |
| Voltage - Supply: | 1.8V ~ 3.6V |
| Current - Receiving: | 6.5mA ~ 11mA |
| Current - Transmitting: | 48mA |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-VFQFN Exposed Pad |
| Supplier Device Package: | 20-QFN (4x4) |
