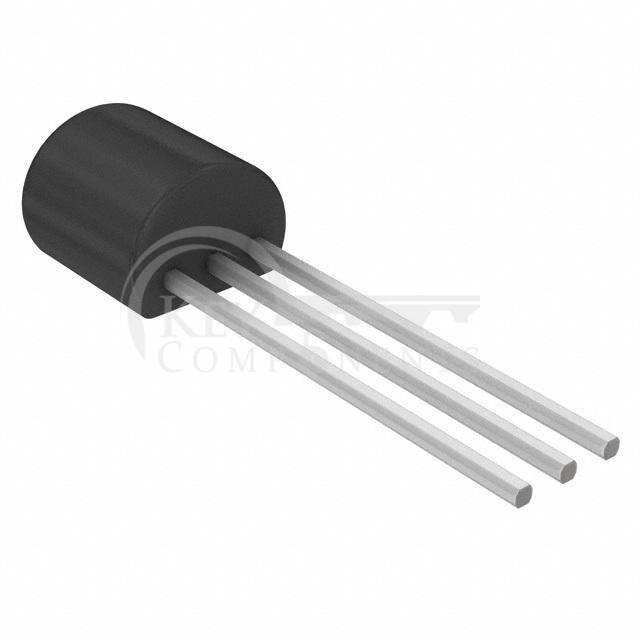

2N5062G
| Manufacturer Part | 2N5062G |
|---|---|
| Manufacturer | onsemi |
| Description | SCR 100V 800MA TO92-3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Off State: | 100 V |
| Voltage - Gate Trigger (Vgt) (Max): | 800 mV |
| Current - Gate Trigger (Igt) (Max): | 200 µA |
| Voltage - On State (Vtm) (Max): | 1.7 V |
| Current - On State (It (AV)) (Max): | 510 mA |
| Current - On State (It (RMS)) (Max): | 800 mA |
| Current - Hold (Ih) (Max): | 5 mA |
| Current - Off State (Max): | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 10A @ 60Hz |
| SCR Type: | Sensitive Gate |
| Operating Temperature: | -40°C ~ 110°C |
| Mounting Type: | Through Hole |
| Package / Case: | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package: | TO-92 (TO-226) |
