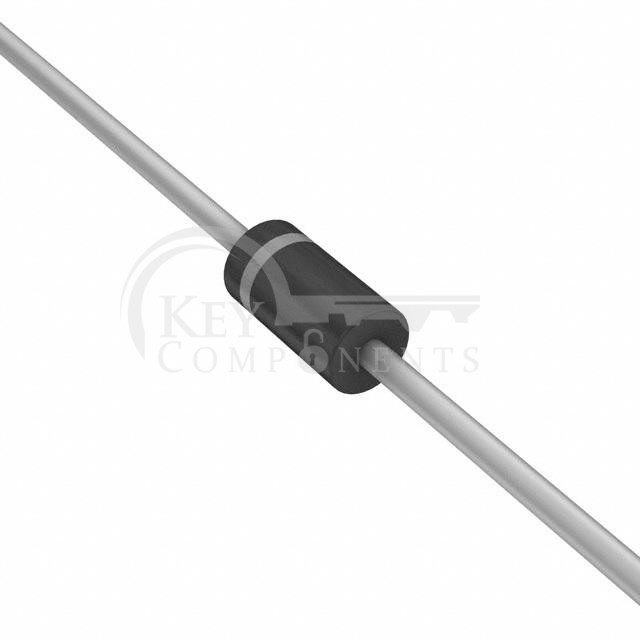

1N4742ATR
| Manufacturer Part | 1N4742ATR |
|---|---|
| Manufacturer | onsemi |
| Description | DIODE ZENER 12V 1W DO41 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 12 V |
| Tolerance: | ±5% |
| Power - Max: | 1 W |
| Impedance (Max) (Zzt): | 9 Ohms |
| Current - Reverse Leakage @ Vr: | 5 µA @ 9.1 V |
| Voltage - Forward (Vf) (Max) @ If: | - |
| Operating Temperature: | -65°C ~ 200°C |
| Mounting Type: | Through Hole |
| Package / Case: | DO-204AL, DO-41, Axial |
| Supplier Device Package: | DO-41 |
