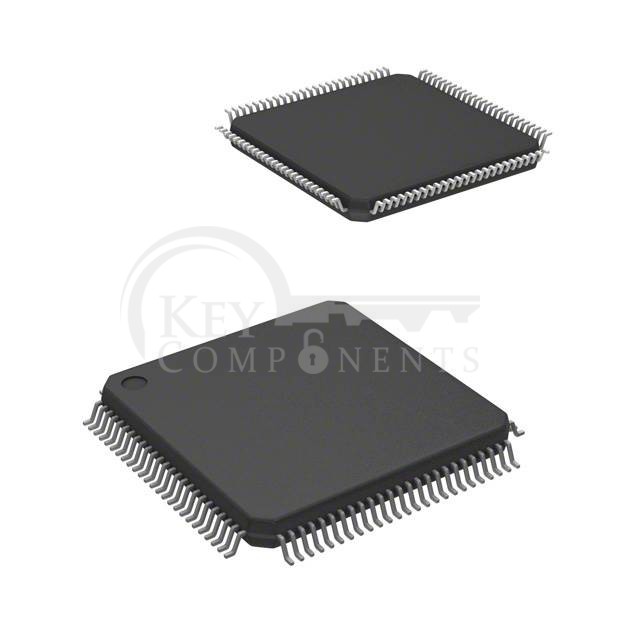

MK20DX128VLL7
| Manufacturer Part | MK20DX128VLL7 |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC MCU 32BIT 128KB FLASH 100LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | ARM® Cortex®-M4 |
| Core Size: | 32-Bit Single-Core |
| Speed: | 72MHz |
| Connectivity: | CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals: | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O: | 66 |
| Program Memory Size: | 128KB (128K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 2K x 8 |
| RAM Size: | 32K x 8 |
| Voltage - Supply (Vcc/Vdd): | 1.71V ~ 3.6V |
| Data Converters: | A/D 33x16b; D/A 1x12b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 100-LQFP |
| Supplier Device Package: | 100-LQFP (14x14) |
