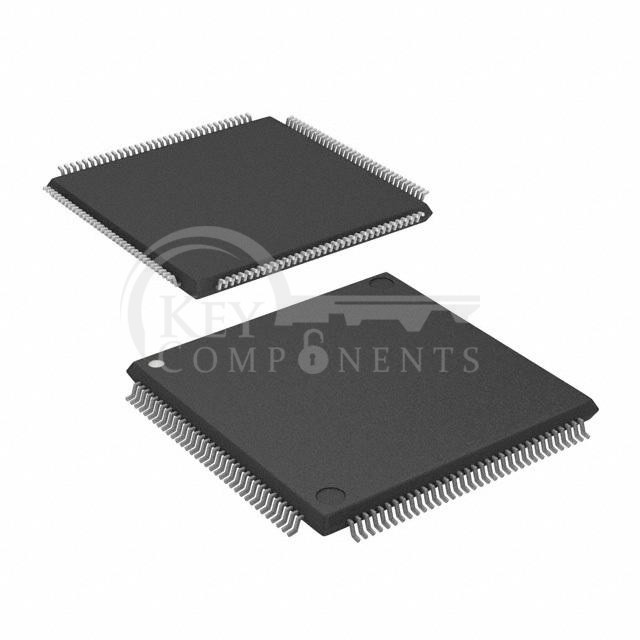

MC56F8366VFVE
| Manufacturer Part | MC56F8366VFVE |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC MCU 16BIT 512KB FLASH 144LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | 56800E |
| Core Size: | 16-Bit |
| Speed: | 60MHz |
| Connectivity: | CANbus, EBI/EMI, SCI, SPI |
| Peripherals: | POR, PWM, Temp Sensor, WDT |
| Number of I/O: | 62 |
| Program Memory Size: | 512KB (256K x 16) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 18K x 16 |
| Voltage - Supply (Vcc/Vdd): | 2.25V ~ 3.6V |
| Data Converters: | A/D 16x12b |
| Oscillator Type: | External |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 144-LQFP |
| Supplier Device Package: | 144-LQFP (20x20) |
