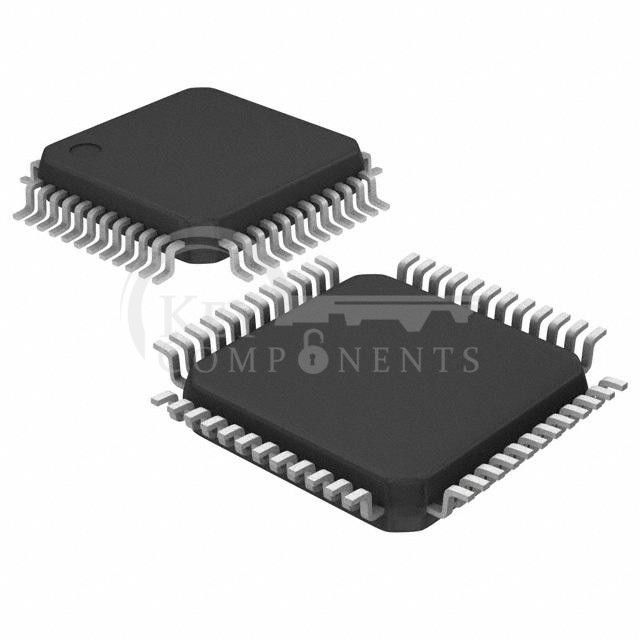

MC56F82746VLFR
| Manufacturer Part | MC56F82746VLFR |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC MCU 32BIT 64KB FLASH 48LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | 56800EX |
| Core Size: | 32-Bit Single-Core |
| Speed: | 100MHz |
| Connectivity: | CANbus, I²C, SCI, SPI |
| Peripherals: | DMA, POR, PWM, WDT |
| Number of I/O: | 39 |
| Program Memory Size: | 64KB (32K x 16) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 4K x 16 |
| Voltage - Supply (Vcc/Vdd): | 2.7V ~ 3.6V |
| Data Converters: | A/D 10x12b; D/A 2x12b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 48-LQFP |
| Supplier Device Package: | 48-LQFP (7x7) |
