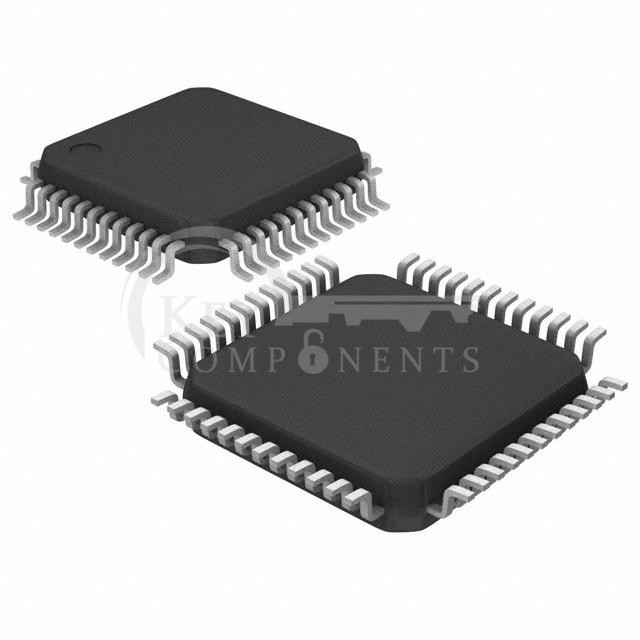

MC56F82746VLF
| Manufacturer Part | MC56F82746VLF |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC MCU 32BIT 64KB FLASH 48LQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | 56800EX |
| Core Size: | 32-Bit Single-Core |
| Speed: | 100MHz |
| Connectivity: | CANbus, I²C, SCI, SPI |
| Peripherals: | DMA, POR, PWM, WDT |
| Number of I/O: | 39 |
| Program Memory Size: | 64KB (32K x 16) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 4K x 16 |
| Voltage - Supply (Vcc/Vdd): | 2.7V ~ 3.6V |
| Data Converters: | A/D 10x12b; D/A 2x12b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 48-LQFP |
| Supplier Device Package: | 48-LQFP (7x7) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
