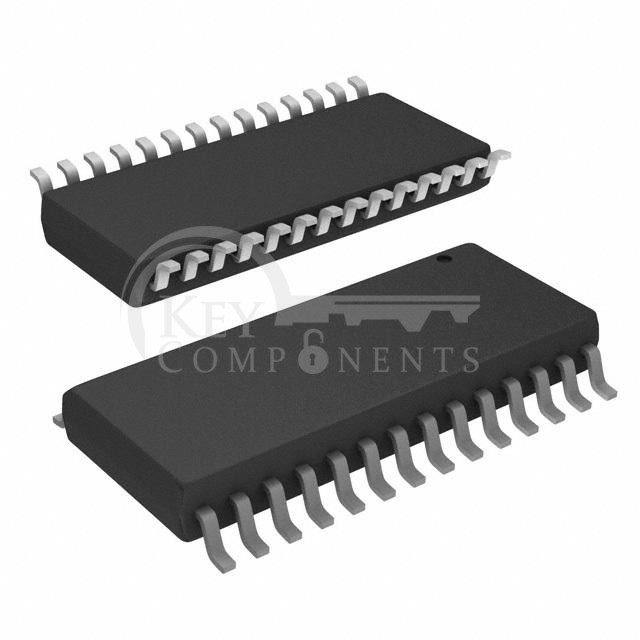

MC56F8002VWLR
| Manufacturer Part | MC56F8002VWLR |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC MCU 16BIT 12KB FLASH 28SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | 56800E |
| Core Size: | 16-Bit |
| Speed: | 32MHz |
| Connectivity: | I²C, LINbus, SCI, SPI |
| Peripherals: | LVD, POR, PWM, WDT |
| Number of I/O: | 23 |
| Program Memory Size: | 12KB (6K x 16) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 1K x 16 |
| Voltage - Supply (Vcc/Vdd): | 1.8V ~ 3.6V |
| Data Converters: | A/D 15x12b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 28-SOIC |
