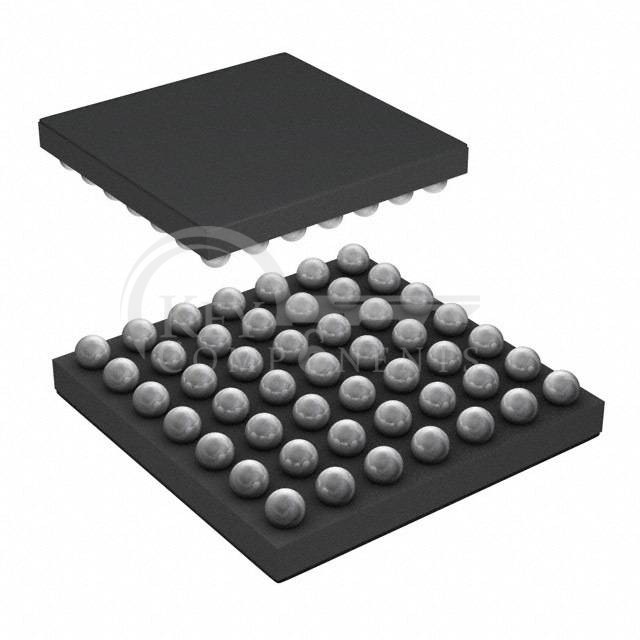

LPC54114J256UK49Z
| Manufacturer Part | LPC54114J256UK49Z |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC MCU 32BIT 256KB FLASH 49WLCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Core Processor: | ARM® Cortex®-M4/M0+ |
| Core Size: | 32-Bit Dual-Core |
| Speed: | 100MHz |
| Connectivity: | I²C, SPI, UART/USART, USB |
| Peripherals: | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O: | 39 |
| Program Memory Size: | 256KB (256K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 192K x 8 |
| Voltage - Supply (Vcc/Vdd): | 1.62V ~ 3.6V |
| Data Converters: | A/D 12x12b |
| Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 49-UFBGA, WLCSP |
| Supplier Device Package: | 49-WLCSP (3.44x3.44) |
