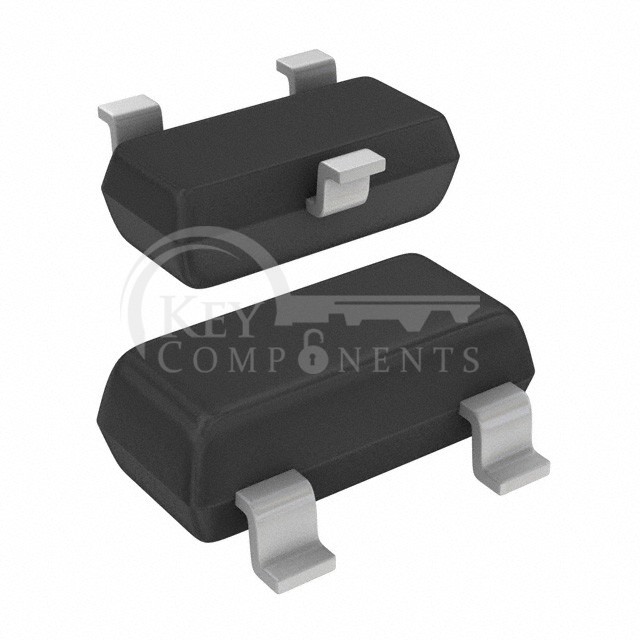

BFU520WF
| Manufacturer Part | BFU520WF |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | RF TRANS NPN 12V 10GHZ SOT323-3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transistor Type: | NPN |
| Voltage - Collector Emitter Breakdown (Max): | 12V |
| Frequency - Transition: | 10GHz |
| Noise Figure (dB Typ @ f): | 1dB @ 1.8GHz |
| Gain: | 13dB |
| Power - Max: | 450mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 60 @ 5mA, 8V |
| Current - Collector (Ic) (Max): | 30mA |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-70, SOT-323 |
| Supplier Device Package: | SC-70 |
